 Stack in SwiftUI

Today we are going to start with use of the Stack in SwiftUI. As Apple has introduce SwiftUI the use of Storyboard and Xib has been eliminated.Thus to construct the View SwiftUI has introduce Stack in the Xcode to implement the iOS Application.

Stack in SwiftUI  are in this forms  they are

1. V Stack

2. H Stack

3. Z Stack

Swift has introduce the SubView in the form of Stack the are Vstack (Verticle Stack) , HStack(Horizontal Stack) and the ZStack (Depth)

VStack in SwiftUI

VStack is the vertical Stack which align in the vertical form View or label under the VStack are group vertically. They are align Vertical axis from Top to bottom.

We can use below code to align the text in vertical form

struct ContentView: View {
    var body: some View {

        VStack {
            Text("Xcode").foregroundColor(.accentColor).padding()
            Text("Swift").foregroundColor(.black).padding()
            Text("JSON").foregroundColor(.green).padding()
        }.padding().background(Color.red)
        .clipShape(Capsule())
    }



}
Screenshot%2B2021 08 20%2Bat%2B7.18.42%2BPM

HStack in SwiftUI

HStack is the Horizontal Stack . The name itself identifies as Horizontal axis  from left to right. The code for the Horizontal Stack is Shown below

struct ContentView: View {

    var body: some View {

        HStack {

            Text("Xcode").foregroundColor(.accentColor).padding()

            Text("Swift").foregroundColor(.black).padding()

            Text("JSON").foregroundColor(.green).padding()

        }.padding().background(Color.red)

        .clipShape(Capsule())

    }



}
Screenshot%2B2021 08 20%2Bat%2B7.17.45%2BPM

ZStack in SwiftUI

ZStack : Zstack is used to group together in the Z Axis (depth) it works on View are grouped in front to  back  in single view. Here Overlapping Takes place.

struct ContentView: View {

    var body: some View {

        ZStack {

            Text("Xcode").foregroundColor(.accentColor).padding(35).background(Color.accentColor)

            Text("Swift").foregroundColor(.black).padding(25).background(Color.black)

            Text("JSON").foregroundColor(.green).padding(10).background(Color.green)

        }.padding().background(Color.red)

        .clipShape(Capsule())

    }



}

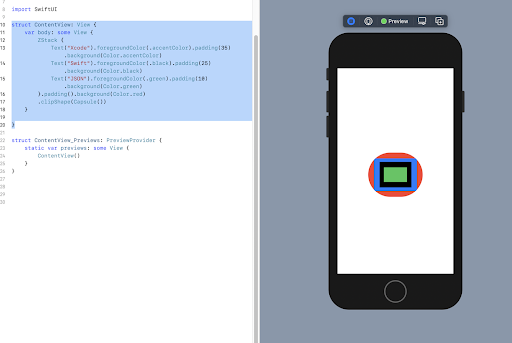

Screenshot%2B2021 08 20%2Bat%2B7.25.23%2BPM
